Professional 0BD2 Scanner Tool, Crucial Tool for Your Car Health

Full OBD Service Modes

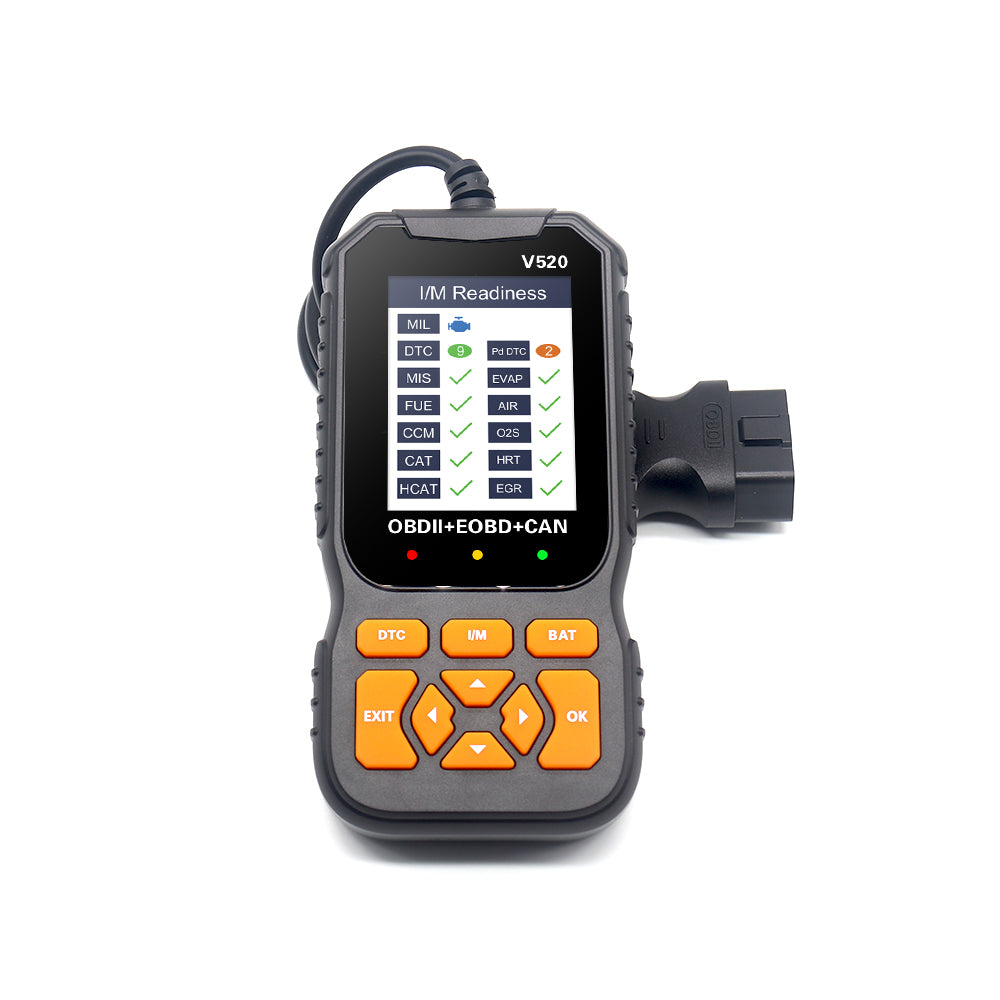

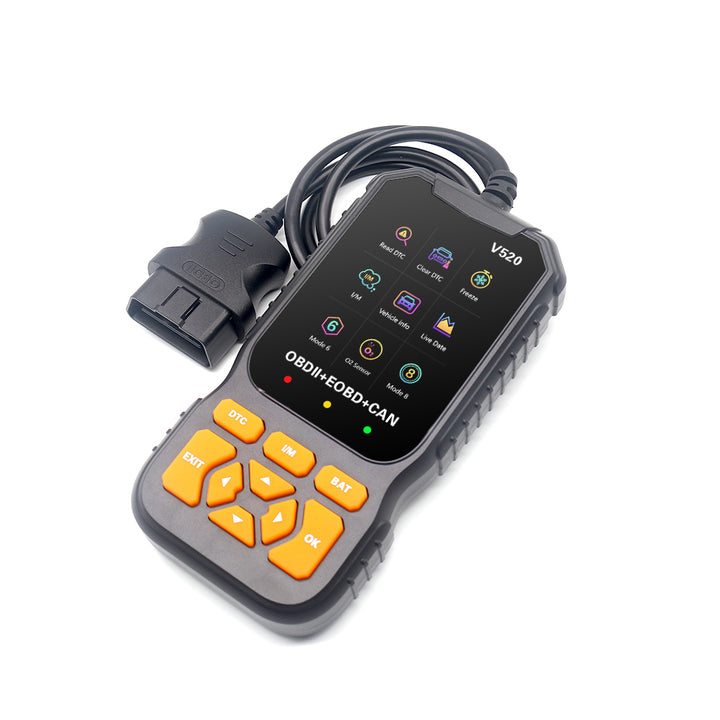

• V520 shines among competitors due to its integrated body, user-friendly design, compact size, organized keypad, intuitive menu, 2.8" color screen.

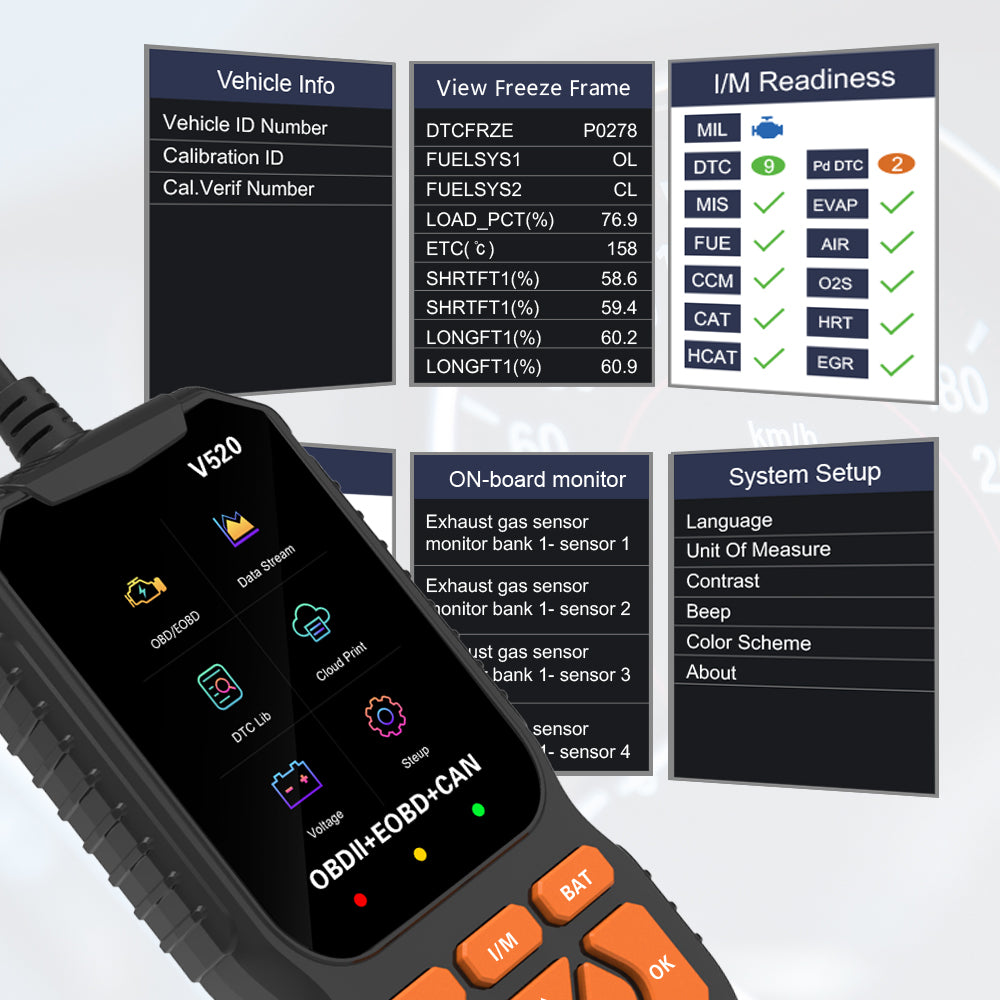

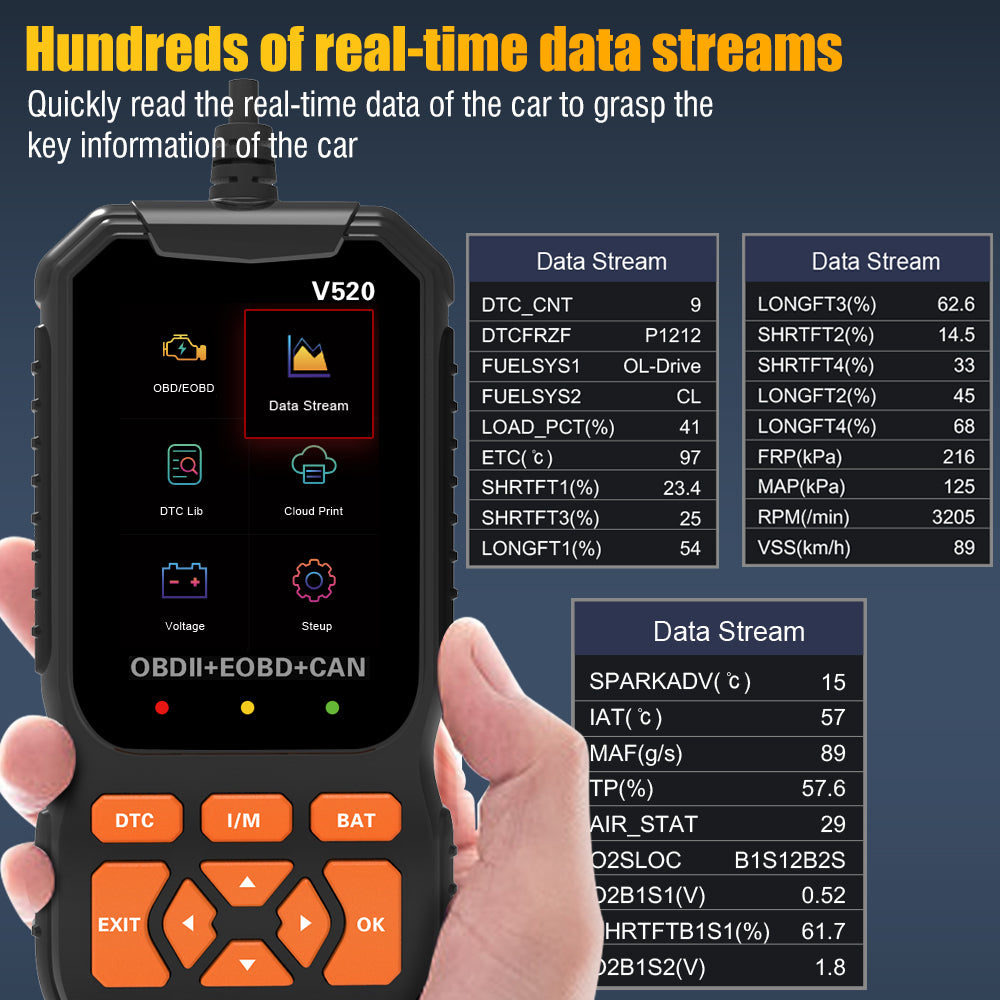

• The V520 major advantage over competitors is its full support for all 10 OBD2 service modes. This includes cloud data print, live data, freeze frame (snapshot) data, trouble codes, clearing/resetting stored test data and DTCs, access to O2 sensor and onboard monitoring examination results, etc.
• This code reader is plug-and-play, requiring no battery or charger, and once the diagnostic cable is plugged into the vehicle's DLC socket, the code reader will take power directly from the vehicle and start working, which is very simple for beginners.
• Supports 10 languages and wide compatible all 12V Vehicles from 1996 and newer.

 NOTE:

• Work with Engine system only.
• ABS / Airbag codes NOT Supported - It is able to read and clear check engine information which is part of OBDII system, but it cannot work with non-OBDII systems, including ABS / Airbag / Oil Service Light, etc.

What's in the box ?

• OBD2 Scanner Code Reader x 1
• Instruction Manual x 1

35,901 DTCS Lookup OBD2 Scanner

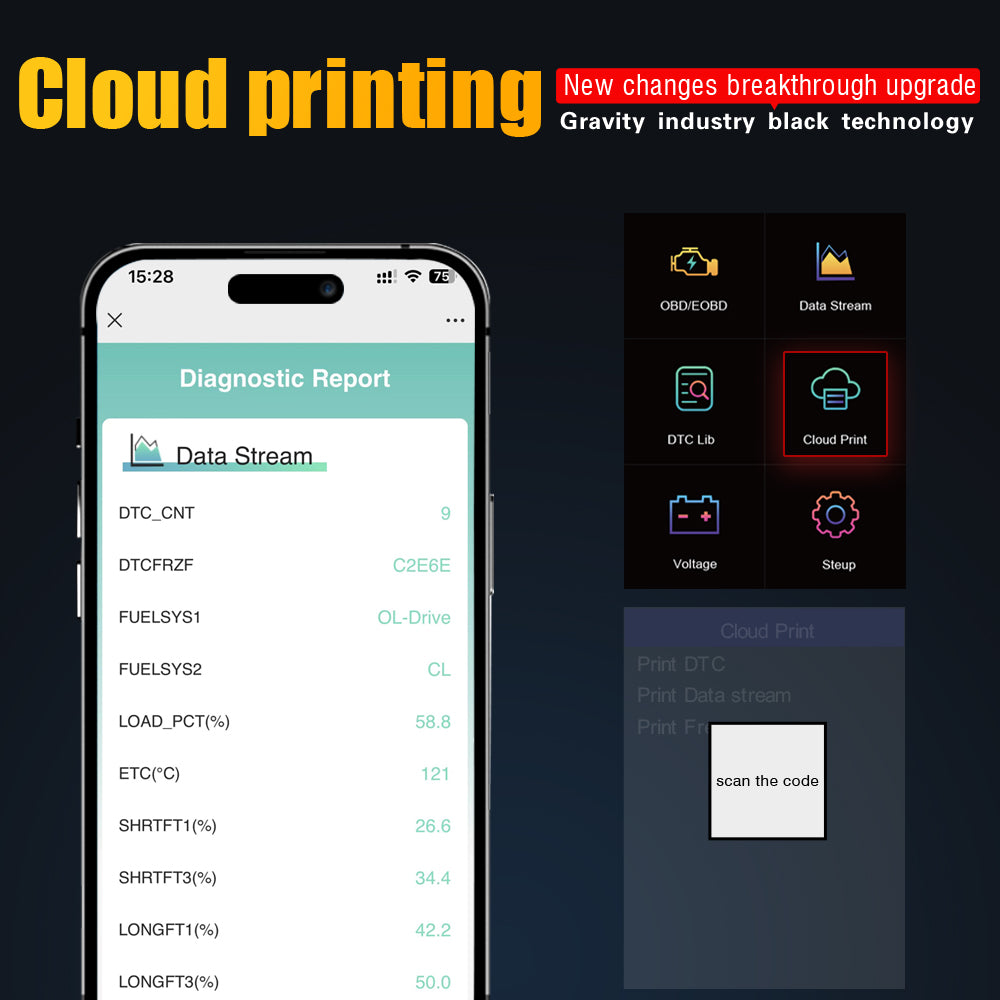

Support Cloud Printing Fault Data

Support Nine OBDII/EOBD Standard Protocol

What are the vehicle brands that the scanner supports?

• Theoretically, it works with most 1996 US-Based, 2000 EU-Based and Asian cars, and newer OBD II & CAN domestic or import vehicles.
• But due to the datalink problem with the ports, it may fail to connect with some vehicles in some circumstances.

How to connect the scanner with the vehicle?

• a) Turn the ignition off.
• b) Connect the code reader’s plug to the vehicle’s OBDII port
• c) Turn the ignition on. DO NOT start the engine.
• d) The code reader will then automatically link to the vehicle’s computer.
• e) Refer to the manual for details.

Suitable as a Birthday Gift, Christmas Gift, Holiday Gift

Why does the scanner’s screen not turn on?

• Check the fuse for the OBD port in the vehicle’s fuse box. Usually, it’s the same fuse as the cigarette socket. If the fuse is blown, there will be no power for the OBD port, so the scanner cannot be power on.
• Does the scanner support Air Bag, ABS, Brake, Suspension, Oil Service, Maintenance Reset or Battery Registration?

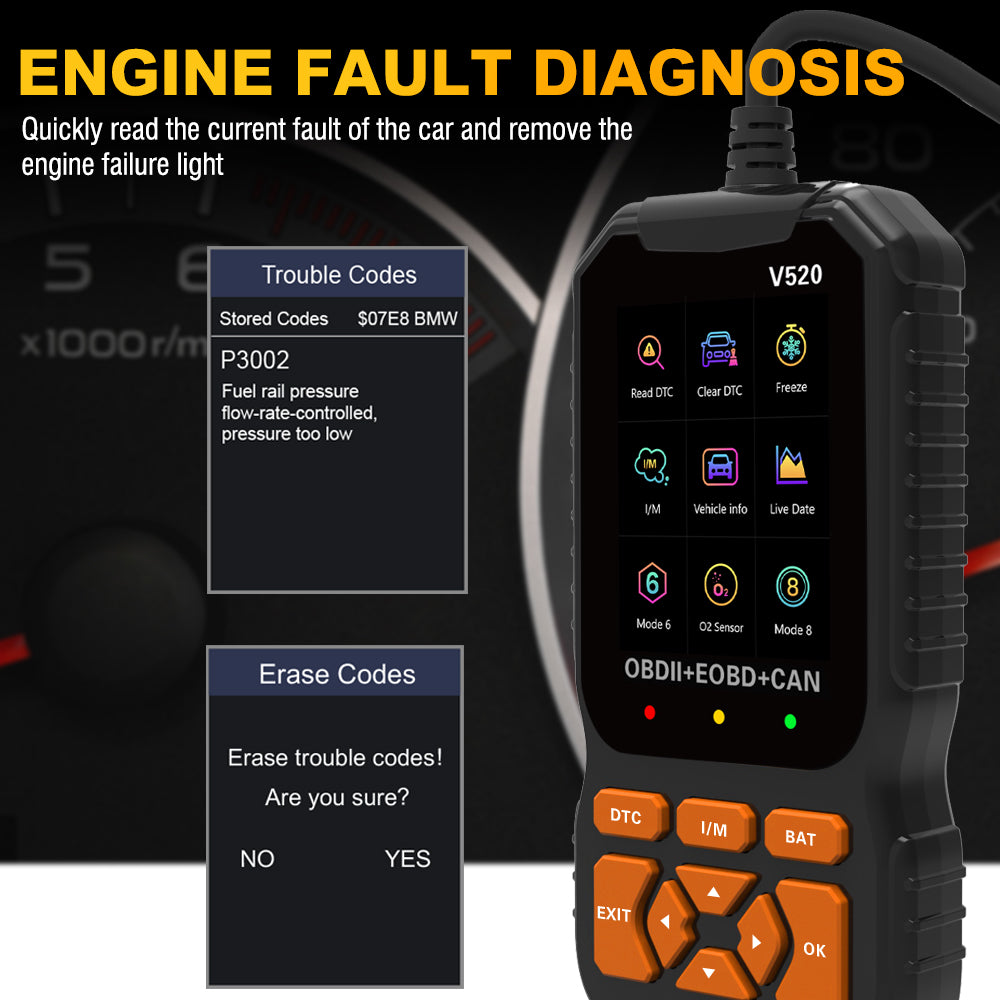

• No. It can only scan the vehicle’s engine system and emission system, detecting the engine fault by displaying the fault code and erasing the fault code after the engine problem is fixed.

Why does the scanner not read the VIN (Vehicle Identification Number)?

• a)- Due to the different vehicle makers and models, some vehicles’ VIN may not be able to read by the scanner. A professional vehicle maker’s scanner is needed.
• b)- The vehicle’s computer may be blocked or revised before in purpose.
